Horizontal Tube, Cabin Type Heater
 |

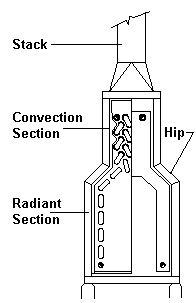

This heater configuration may have the hip as shown here, or the radiant may be just a rectangular box. In the radiant section, the tubes are along the wall including the hip. The burners may be in the end of the firebox or the bottom or the side walls. If fired from the sides, there is often a firewall down the center of the box. |
