Intube Pressure Drop


The intube pressure drop may be calculated by any number of methods available today, but the following procedures should give sufficient results for HRSG design. The pressure loss in HRSG tubes and fittings is normally calculated by first converting the fittings to an equivalent length of pipe. Then the average properties for a segment of piping and fittings can be used to calculate a pressure drop per foot to apply to the overall equivalent length. This pressure drop per foot value can be improved by correcting it for inlet and outlet specific volumes.

Friction Loss:
Dp = 0.00517/di*G2*Vlm*F*Lequiv
Where,
Dp = Pressure drop, psi
di = Inside diameter of tube, in
G = Mass velocity of fluid, lb/sec-ft2
Vlm = Log mean specific volume correction
F = Fanning friction factor
Lequiv = Equivalent length of pipe run, ft
And,
Vlm = (V2-V1)/ln(V2/V1)
For single phase flow,
V1 = Specific volume at start of run, ft3/lb
V2 = Specific volume at end of run, ft3/lb
For mixed phase flow,
Vi = 10.73*(Tf/(Pv*MWv)*Vfrac+(1-Vfrac)/rl
Where,
Vi = Specific volume at point, ft3/lb
Tf = Fluid temperature, °R
Pv = Press. of fluid at point, psia
MWv = Molecular weight of vapor
Vfrac = Weight fraction of vapor %/100
rl = Density of liquid, lb/ft3
Fanning Friction Factor:
The Moody friction factor, for a non-laminar flow, may be calculated by using the Colebrook equation relating the friction factor to the Reynolds number and relative roughness. And the Fanning friction factor is 1/4 the Moody factor. For a clean pipe or tube, the relative roughness value for an inside diameter given in inches is normally 0.0018 inch.
With this, we can calculate the factor,
Reynolds number =
Inside Diameter, inches =
Friction factor, F:
Equivalent Length Of Return Bends:

The equivalent length of a return bend may be obtained from the following curves based on Maxwell table and can be corrected using the Reynolds number correction factor.

Lequiv = FactNre*Lrb
Where,
FactNre = Reynolds number correction
Lrb = Equivalent length of return bend, ft

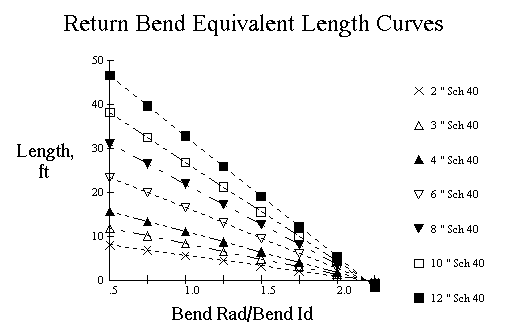

Return Bend Equivalent Length:
Return Bend Equivalent Length

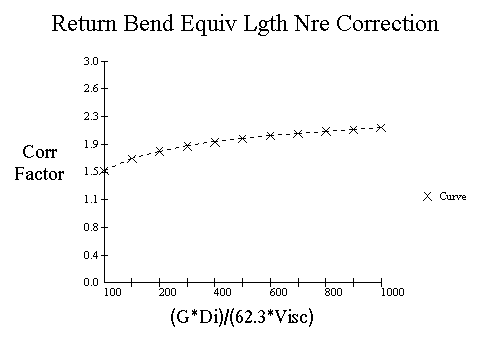

Reynolds Correction:
Reynolds Correction
Where,
G = Mass velocity, lb/sec-ft2
Di = Inside tube diameter, in
Visc = Viscosity, cp

Now that we have all the details described, we can calculate the pressure drop for some typical heater coils.

Coil Data
Tube inside dia., in: Pipe straight length, ft:
Bend radius, in: Number of returns:
Process Data
Mass vel., lb/sec-ft2: Viscosity, cp:
Spec. vol. at start, ft3/lb: Spec. vol. at end, ft3/lb:
Pressure Drop, psi:
